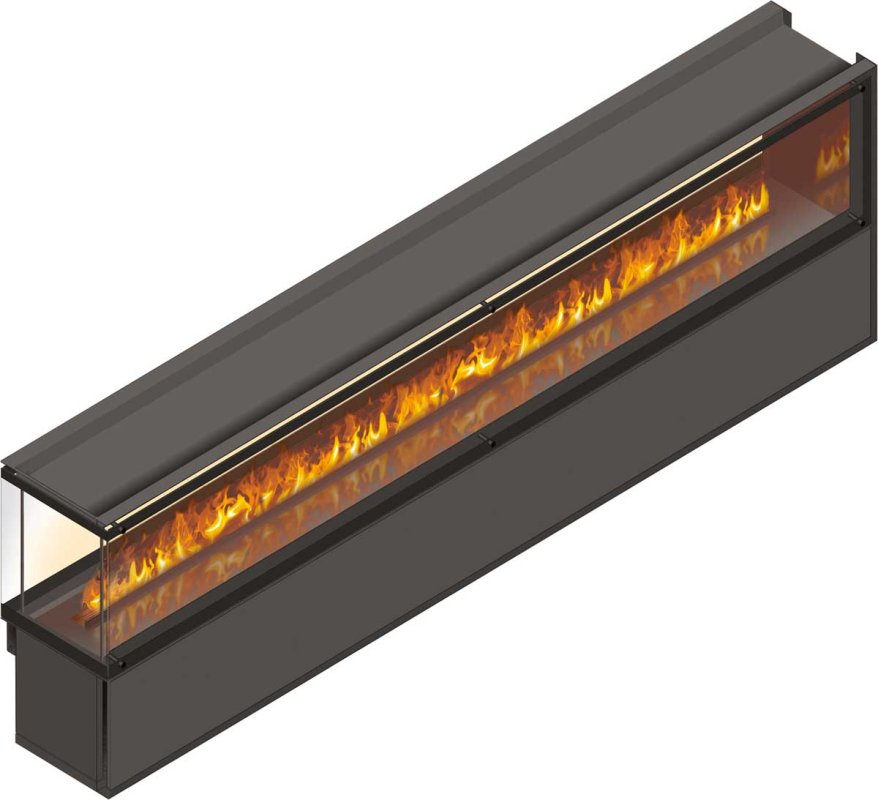

Effect fire from The Flame Endless Fire Box 280 LKL
ENDLESS FIRE BOX FRONT offers the absolutely most beautiful, most realistic and noble flame picture from The Flame program. A continuous, moving, voluminous band of flames with a beautiful play of colours.
Only electricity (230 V) and bio-fluid (distilled water) connected with special lamps and ultrasonic nebulizers conjure up this fire dream The flame intensity is adjustable and a convenient remote control ensures easy handling. The FIRE BOX has no heating effect.

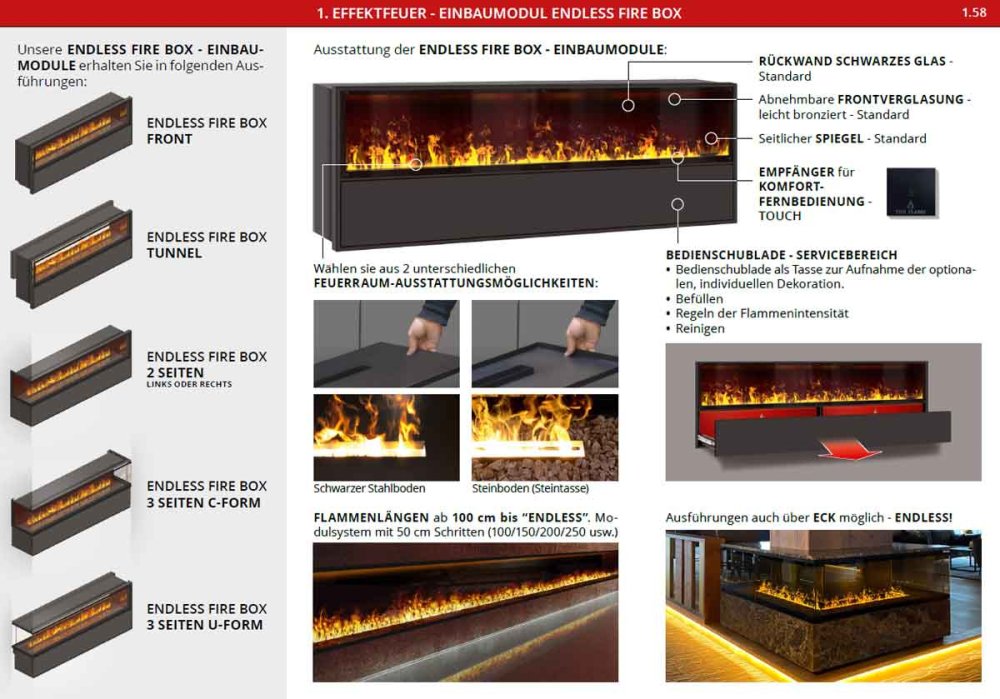

Inside glazing: black glass rear wall, 2 removable ESG front glazings, 1 ESG side glazing, all made of bronze glass - partially black coated, combustion chamber floor: black steel or stone cup, control drawer as a cup for holding the optional, individual decoration.
Scope of delivery:
Effect fire module with effect glazing, endless effect burner, 1-part operating drawer
Options:
Bio-Fluid (25 liter canister), Bio-Fluid (60 liter canister), tap (for 25 or 60 liter canister), crackle module, decorative stones white or anthrazit, decorative stones lava broken, decorative wood set (approx. 11 pieces ), Set Clear & Clean, window heating, TOUCH wireless remote control, automatic filling system - Fluidmatic with O-Box*, AUTOSWITCH - optional preparation for operation with a timer (wall switch, smart home systems, Masterkey, etc.).
Dimensions: approx. W 281.4 x H 84.0 x D 39 cm

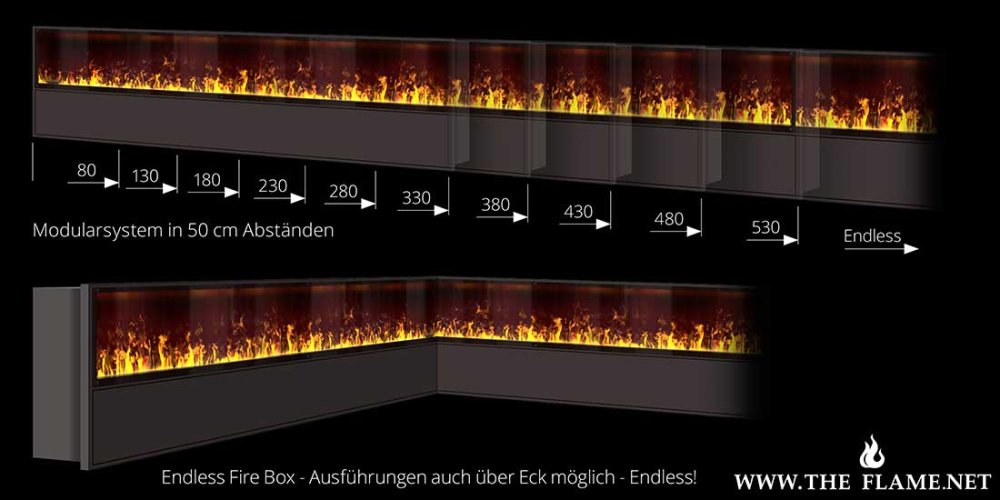

Flame ribbon approx. 250 cm
Tank capacity: max. 9.5 l
Burn time: max. 6 hours
Consumption: approx. 0.3 - 0.6 l/h

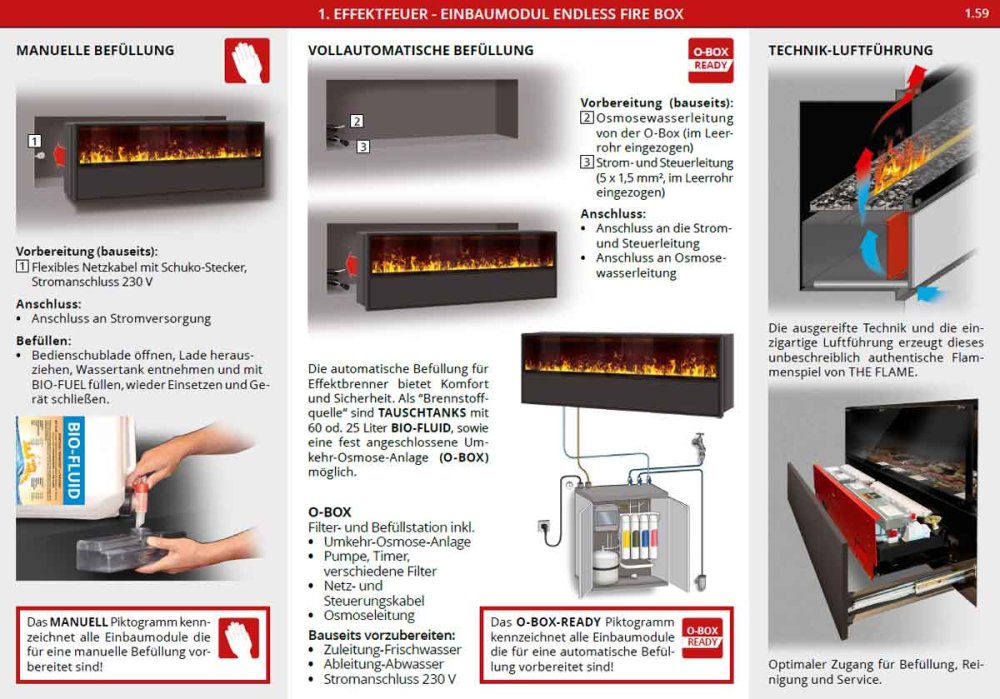

* Automatic filling system - Fluidmatic so that commercially installed effect fires have enough water (biofluid) in order not to have to refill often.
Description: Automatic filling for effect burners provides comfort and safety. As a fuel source exchange tanks with 60 l or 25 l Bio-Fluid, as well as a permanently connected reverse osmosis system are possible.
Burning time 25 l: up to approx. 125 h / effect burner; Burning time 60 l: up to approx. 300 h / effect burner; Burning time fixed connection: up to approx. 3000 h / effect burner
Obligatory cleaning interval: every 100 h
How it works: The effect burner is supplied with bio-fluid or distilled water via an external fuel source (tank or osmosis stationary connection). The filling takes place in gravity mode via a pipe system. The integrated burner control unit continuously monitors the necessary amount of fuel or regulates its supply.
Operation:
• Standard: manual and remote IR
• Optional: "Master-Control Fluidmatic" with timer, fill monitoring, safety shutdown and interface for external input signals (Smart Home System, sensor for safety catch basin etc.)
