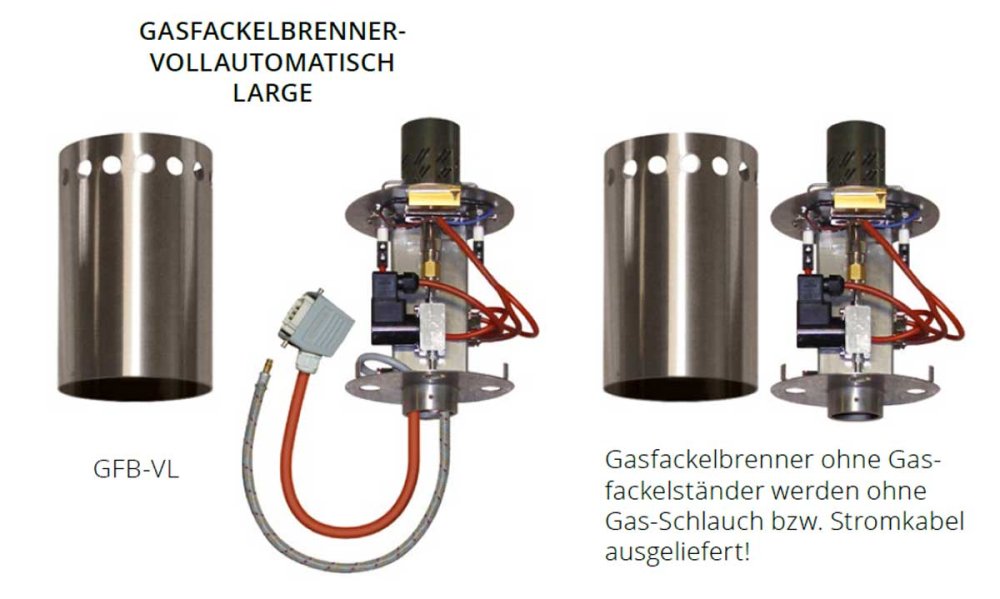

Gas Flare Burner automatically
The gas torch burner for your own creations! Or also available with torches from The Flame.
Dimensions: approx. H/Ø 27.8/18.0 cm
Individual control options for your fully automatic gas flare system:
• Manually
• Remote control
• Timer
• Motion detector
• Photoelectric barrier
• Twilight switch
• Audio control (music)
Description gas burner:
Gas torch burner fully automatic
CE mark in accordance with the Gas Appliance Safety Regulations
Registration number: CE-0433BP0001
Completely assembled and wired to terminals ready for use
Scope of delivery of the fully automatic gas burner:
- Cover cylinder made of ground stainless steel
- Burner insert and burner fitting
- Ignition transformer (5,000 V) and 2 spark plugs
- Electromagnetic gas valve
- Type E thermocouple and signal converter
- Heating for melting snow
- Stainless steel electrical box
- Mounting plate and base plate made of stainless steel to hold the above-mentioned parts
- Stainless steel adjusting ring for mounting on a pipe ø 50 mm
- Fully automatic flame monitor with automatic re-ignition (thermal basis)
- Flame height can be adjusted anywhere from 20 - 80 cm.
Some torches from THE FLAME can be equipped with the “GAS TORCH BURNER-FULLY AUTOMATIC LARGE” (including gas coupling and socket for control, monitoring, heating and power). Please ask.
Optional accessories:
Control cabinet (electrical distribution) for several gas flares
IP66 (dust-tight and water jet protected, pre-fuse of the necessary controls, control of the torches (2-14 pieces), control of snow melting, main switch, weekly timer for automatic operation, power supply according to EN61558.
Completely assembled ready for use, wired to terminals and including plans and documentation.
Remote control and retrieval panel
Attractive design, completely wired and printed including all buttons on terminals. Emergency stop mushroom switch, selector switch (permanent/off/automatic), interference suppression button, for installation in a double flush-mounted box.
Connection set - PLUG & PLAY 50
Connection includes 50 cm control cable, plug and counterpart for outdoor use. 50 cm gas flex cable including quick-release fastener and counterpart - everything ready to plug in, ideal for easy installation and future service.
All decorative fire furniture and burners from The Flame are tested and can also be used in public areas. An expert opinion regarding “basic safety requirements for non-stationary fireplaces for decorative purposes” from a state-authorized and sworn civil engineer, as well as a TÜV test, are available as the basis for official approval.
